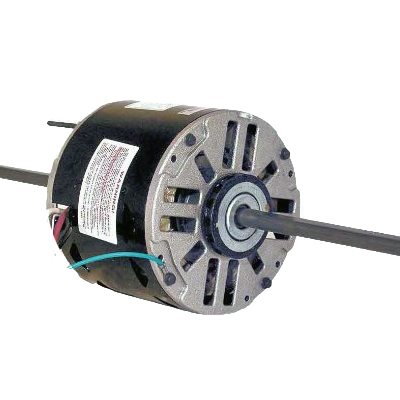

# RAL1054 - 1/2 HP, 115 Volt
Press and move to zoom.
Mouse over image to zoom.

# RAL1054 - 1/2 HP, 115 Volt

Product Code: RAL1054

$333.18
  • Horsepower : 1/2
  • Voltage : 115
  • Amps : 6.00
  • RPM : 1625
  • Frequency : 60 Hz
  • Length : 5-1/8"
  • "C" Dim. : 20"
  • Enclosure : Open Air Over
  • Shaft Dim. : 7-5/8" x 1/2" x 7-1/4"
  • Type : Permanent Split Capacitor
  • Speeds : 3
  • Diameter : 5-5/8"
  • Frame : 48Y
  • Bearings : Sleeve
  • Rotation : CCWLE
  • Protector : Automatic
  • Service Factor : 1.00
  • Phase : 1
  • Ambient Temp. : 40°C
  • Capacitor Rating : 5MFD/370V
  • Feature(s) : Class 'A' Insulation, No Base, Mounting accessories packaged with motor
  • Weight (lbs.) : 16
  • Availability: Out of Stock
Average Rating:

Substitute Products

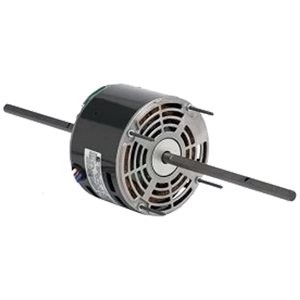

# NAL1054 - 1/2 HP, 115 Volt
