Universal Electric Motors

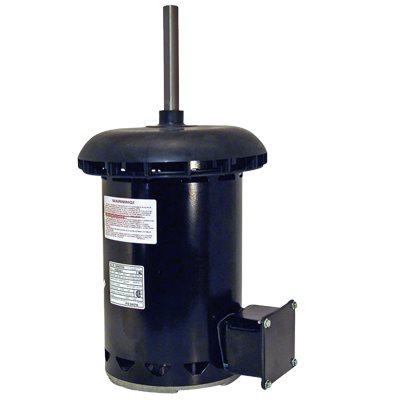

# FC1066F - 0.6 HP, 200-230/460 Volt
Product Code: FC1066F
- Horsepower : 0.6
- Voltage : 200-230/460
- Amps : 4.00/2.00
- RPM : 1075
- Frequency : 60 Hz
- Length : 7"
- "C" Dim. : 12-1/2"
- Enclosure : Open Lead End
- Shaft Dim. : 1/2" x 3-7/8"
- Type : Permanent Split Capacitor
- Speeds : 1
- Diameter : 5-5/8"
- Frame : 48Y
- Bearings : Ball
- Rotation : Reversible
- Protector : Automatic
- Service Factor : 1.00
- Phase : 1
- Ambient Temp. : 70°C
- Capacitor Rating : 7.5MFD-440V
- Feature(s) : Class 'F' Insulation, HeatMaster, C-Box Included, No Base
- Weight (lbs.) : 18
