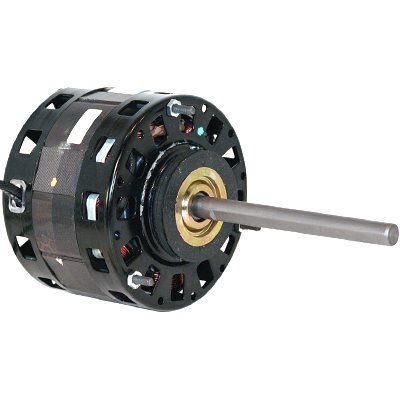

# B6411 - 1/8 HP, 208-230 Volt

Product Code: B6411

$172.98
  • Horsepower : 1/8
  • Voltage : 208-230
  • Amps : 2.60
  • RPM : 1050
  • Frequency : 60 Hz
  • Length : 3-11/32"
  • "C" Dim. : 8-7/8"
  • Enclosure : Open Air Over
  • Shaft Dim. : 1/2" x 5-17/32"
  • Type : Shaded Pole
  • Speeds : 1
  • Diameter : 5"
  • Frame : 42
  • Bearings : Sleeve
  • Rotation : CCWLE
  • Protector : Automatic
  • Service Factor : 1.00
  • Phase : 1
  • Ambient Temp. : 40°C
  • Feature(s) : Class 'A' Insulation, Resilient mounting rings included, 3 thru-bolts, 4.42 dia. bolt circle
  • Weight (lbs.) : 9
  • Availability: Out of Stock
